Tools #
The thanos tools subcommand of Thanos is a set of additional CLI, short-living tools that are meant to be ran for development or debugging purposes.
All commands added as tools should land in tools.go or file with tools_ prefix.
Flags #
usage: thanos tools <command> [<args> ...]
Tools utility commands
Flags:
-h, --[no-]help Show context-sensitive help (also try --help-long and
--help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
Subcommands:
tools bucket verify [<flags>]
Verify all blocks in the bucket against specified issues. NOTE: Depending on
issue this might take time and will need downloading all specified blocks to
disk.
tools bucket ls [<flags>]
List all blocks in the bucket.
tools bucket inspect [<flags>]
Inspect all blocks in the bucket in detailed, table-like way.
tools bucket web [<flags>]
Web interface for remote storage bucket.
tools bucket replicate [<flags>]
Replicate data from one object storage to another. NOTE: Currently it works
only with Thanos blocks (meta.json has to have Thanos metadata).
tools bucket downsample [<flags>]
Continuously downsamples blocks in an object store bucket.
tools bucket cleanup [<flags>]
Cleans up all blocks marked for deletion.
tools bucket mark --id=ID --marker=MARKER [<flags>]
Mark block for deletion or no-compact in a safe way. NOTE: If the compactor
is currently running compacting same block, this operation would be
potentially a noop.
tools bucket rewrite --id=ID [<flags>]
Rewrite chosen blocks in the bucket, while deleting or modifying
series Resulted block has modified stats in meta.json. Additionally
compaction.sources are altered to not confuse readers of meta.json.
Instead thanos.rewrite section is added with useful info like old sources
and deletion requests. NOTE: It's recommended to turn off compactor while
doing this operation. If the compactor is running and touching exactly same
block that is being rewritten, the resulted rewritten block might only cause
overlap (mitigated by marking overlapping block manually for deletion) and
the data you wanted to rewrite could already part of bigger block.
Use FILESYSTEM type of bucket to rewrite block on disk (suitable for vanilla
Prometheus) After rewrite, it's caller responsibility to delete or mark
source block for deletion to avoid overlaps. WARNING: This procedure is
*IRREVERSIBLE* after certain time (delete delay), so do backup your blocks
first.
tools bucket retention [<flags>]
Retention applies retention policies on the given bucket. Please make sure
no compactor is running on the same bucket at the same time.
tools bucket upload-blocks [<flags>]
Upload blocks push blocks from the provided path to the object storage.
tools rules-check --rules=RULES
Check if the rule files are valid or not.
Bucket #
The thanos tools bucket subcommand of Thanos is a set of commands to inspect data in object storage buckets. It is normally run as a standalone command to aid with troubleshooting.
Example:
thanos tools bucket verify --objstore.config-file=bucket.yml
The content of bucket.yml:
type: GCS
config:
bucket: ""
service_account: ""
use_grpc: false
grpc_conn_pool_size: 0
http_config:
idle_conn_timeout: 0s
response_header_timeout: 0s
insecure_skip_verify: false
tls_handshake_timeout: 0s
expect_continue_timeout: 0s
max_idle_conns: 0
max_idle_conns_per_host: 0
max_conns_per_host: 0
tls_config:
ca_file: ""
cert_file: ""
key_file: ""
server_name: ""
insecure_skip_verify: false
disable_compression: false
chunk_size_bytes: 0
max_retries: 0
prefix: ""
Bucket can be extended to add more subcommands that will be helpful when working with object storage buckets by adding a new command within /cmd/thanos/tools_bucket.go .
usage: thanos tools bucket [<flags>] <command> [<args> ...]
Bucket utility commands
Flags:
-h, --[no-]help Show context-sensitive help (also try --help-long and
--help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
--objstore.config-file=<file-path>
Path to YAML file that contains object
store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--objstore.config=<content>
Alternative to 'objstore.config-file' flag (mutually
exclusive). Content of YAML file that contains
object store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
Subcommands:
tools bucket verify [<flags>]
Verify all blocks in the bucket against specified issues. NOTE: Depending on
issue this might take time and will need downloading all specified blocks to
disk.
tools bucket ls [<flags>]
List all blocks in the bucket.
tools bucket inspect [<flags>]
Inspect all blocks in the bucket in detailed, table-like way.
tools bucket web [<flags>]
Web interface for remote storage bucket.
tools bucket replicate [<flags>]
Replicate data from one object storage to another. NOTE: Currently it works
only with Thanos blocks (meta.json has to have Thanos metadata).
tools bucket downsample [<flags>]
Continuously downsamples blocks in an object store bucket.
tools bucket cleanup [<flags>]
Cleans up all blocks marked for deletion.
tools bucket mark --id=ID --marker=MARKER [<flags>]
Mark block for deletion or no-compact in a safe way. NOTE: If the compactor
is currently running compacting same block, this operation would be
potentially a noop.
tools bucket rewrite --id=ID [<flags>]
Rewrite chosen blocks in the bucket, while deleting or modifying
series Resulted block has modified stats in meta.json. Additionally
compaction.sources are altered to not confuse readers of meta.json.
Instead thanos.rewrite section is added with useful info like old sources
and deletion requests. NOTE: It's recommended to turn off compactor while
doing this operation. If the compactor is running and touching exactly same
block that is being rewritten, the resulted rewritten block might only cause
overlap (mitigated by marking overlapping block manually for deletion) and
the data you wanted to rewrite could already part of bigger block.
Use FILESYSTEM type of bucket to rewrite block on disk (suitable for vanilla
Prometheus) After rewrite, it's caller responsibility to delete or mark
source block for deletion to avoid overlaps. WARNING: This procedure is
*IRREVERSIBLE* after certain time (delete delay), so do backup your blocks
first.
tools bucket retention [<flags>]
Retention applies retention policies on the given bucket. Please make sure
no compactor is running on the same bucket at the same time.
tools bucket upload-blocks [<flags>]
Upload blocks push blocks from the provided path to the object storage.
Bucket Web #

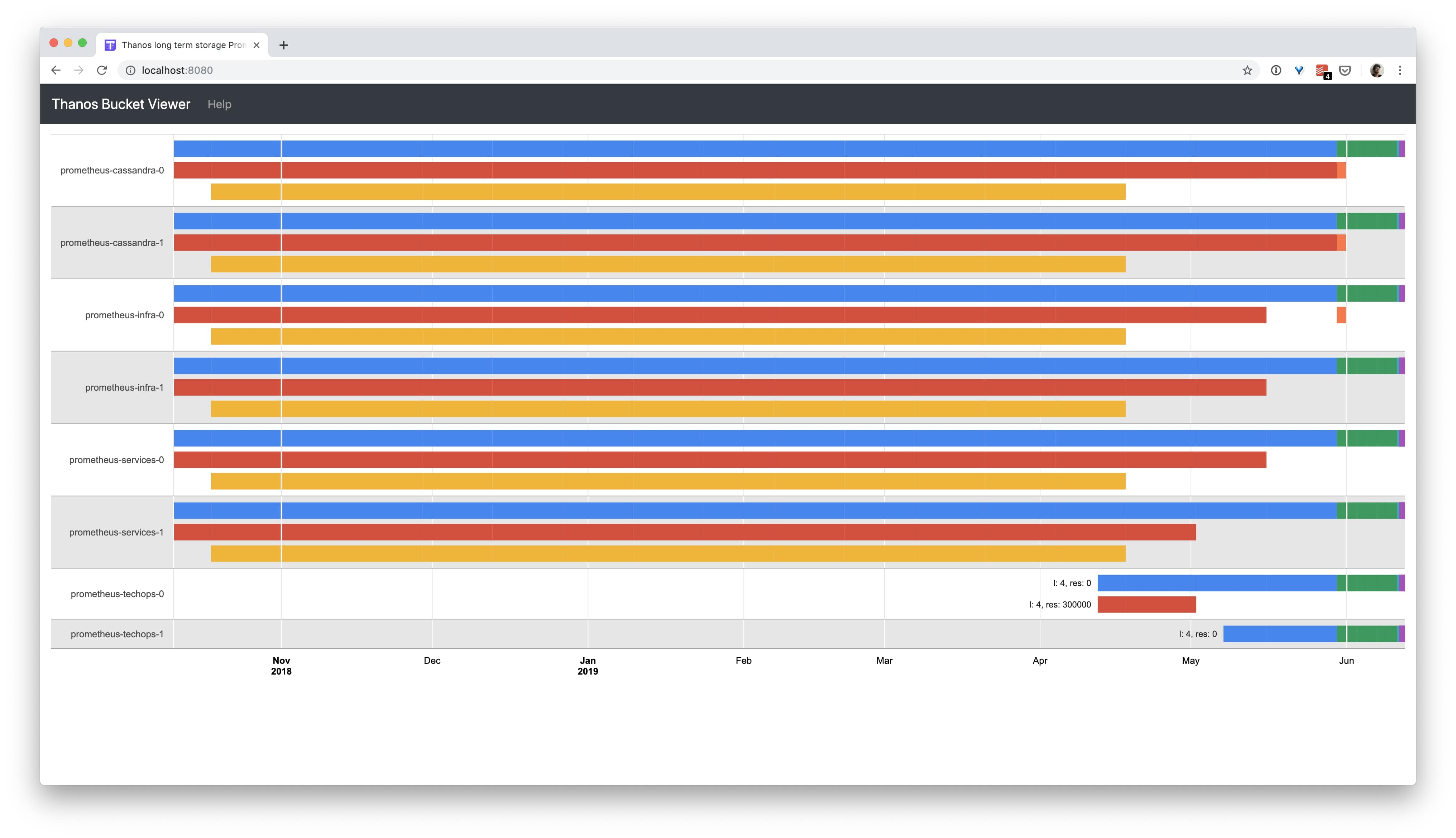

tools bucket web is used to inspect bucket blocks in form of interactive web UI.
This will start local webserver that will periodically update the view with given refresh.
Example:
thanos tools bucket web --objstore.config-file="..."
usage: thanos tools bucket web [<flags>]
Web interface for remote storage bucket.
Flags:
-h, --[no-]help Show context-sensitive help (also try
--help-long and --help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or
json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
--objstore.config-file=<file-path>
Path to YAML file that contains object
store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--objstore.config=<content>
Alternative to 'objstore.config-file'
flag (mutually exclusive). Content of
YAML file that contains object store
configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--http-address="0.0.0.0:10902"
Listen host:port for HTTP endpoints.
--http-grace-period=2m Time to wait after an interrupt received for
HTTP Server.
--http.config="" [EXPERIMENTAL] Path to the configuration file
that can enable TLS or authentication for all
HTTP endpoints.
--web.route-prefix="" Prefix for API and UI endpoints. This allows
thanos UI to be served on a sub-path.
Defaults to the value of --web.external-prefix.
This option is analogous to --web.route-prefix
of Prometheus.
--web.external-prefix="" Static prefix for all HTML links and redirect
URLs in the bucket web UI interface.
Actual endpoints are still served on / or the
web.route-prefix. This allows thanos bucket
web UI to be served behind a reverse proxy that
strips a URL sub-path.
--web.prefix-header="" Name of HTTP request header used for dynamic
prefixing of UI links and redirects.
This option is ignored if web.external-prefix
argument is set. Security risk: enable
this option only if a reverse proxy in
front of thanos is resetting the header.
The --web.prefix-header=X-Forwarded-Prefix
option can be useful, for example, if Thanos
UI is served via Traefik reverse proxy with
PathPrefixStrip option enabled, which sends the
stripped prefix value in X-Forwarded-Prefix
header. This allows thanos UI to be served on a
sub-path.
--[no-]web.disable-cors Whether to disable CORS headers to be set by
Thanos. By default Thanos sets CORS headers to
be allowed by all.
--refresh=30m Refresh interval to download metadata from
remote storage
--timeout=5m Timeout to download metadata from remote storage
--label=LABEL External block label to use as group title
--[no-]disable-admin-operations
Disable UI/API admin operations like marking
blocks for deletion and no compaction.
--min-time=0000-01-01T00:00:00Z
Start of time range limit to serve. Thanos
tool bucket web will serve only blocks, which
happened later than this value. Option can be a
constant time in RFC3339 format or time duration
relative to current time, such as -1d or 2h45m.
Valid duration units are ms, s, m, h, d, w, y.
--max-time=9999-12-31T23:59:59Z
End of time range limit to serve. Thanos
tool bucket web will serve only blocks,
which happened earlier than this value. Option
can be a constant time in RFC3339 format or time
duration relative to current time, such as -1d
or 2h45m. Valid duration units are ms, s, m, h,
d, w, y.
--selector.relabel-config-file=<file-path>
Path to YAML file with relabeling
configuration that allows selecting blocks
to act on based on their external labels.
It follows thanos sharding relabel-config
syntax. For format details see:
https://thanos.io/tip/thanos/sharding.md/#relabelling
--selector.relabel-config=<content>
Alternative to 'selector.relabel-config-file'
flag (mutually exclusive). Content of YAML
file with relabeling configuration that allows
selecting blocks to act on based on their
external labels. It follows thanos sharding
relabel-config syntax. For format details see:
https://thanos.io/tip/thanos/sharding.md/#relabelling
Bucket Verify #
tools bucket verify is used to verify and optionally repair blocks within the specified bucket.
Example:
thanos tools bucket verify --objstore.config-file="..."
When using the --repair option, make sure that the compactor job is disabled first.
usage: thanos tools bucket verify [<flags>]
Verify all blocks in the bucket against specified issues. NOTE: Depending on
issue this might take time and will need downloading all specified blocks to
disk.
Flags:
-h, --[no-]help Show context-sensitive help (also try --help-long and
--help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
--objstore.config-file=<file-path>
Path to YAML file that contains object
store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--objstore.config=<content>
Alternative to 'objstore.config-file' flag (mutually
exclusive). Content of YAML file that contains
object store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--objstore-backup.config-file=<file-path>
Path to YAML file that contains object
store-backup configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
Used for repair logic to backup blocks before
removal.
--objstore-backup.config=<content>
Alternative to 'objstore-backup.config-file'
flag (mutually exclusive). Content of YAML
file that contains object store-backup
configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
Used for repair logic to backup blocks before
removal.
-r, --[no-]repair Attempt to repair blocks for which issues were
detected
-i, --issues=index_known_issues... ...
Issues to verify (and optionally repair). Possible
issue to verify, without repair: [overlapped_blocks];
Possible issue to verify and repair:
[index_known_issues duplicated_compaction]
--id=ID ... Block IDs to verify (and optionally repair) only.
If none is specified, all blocks will be verified.
Repeated field
--delete-delay=0s Duration after which blocks marked for deletion
would be deleted permanently from source bucket by
compactor component. If delete-delay is non zero,
blocks will be marked for deletion and compactor
component is required to delete blocks from source
bucket. If delete-delay is 0, blocks will be deleted
straight away. Use this if you want to get rid of
or move the block immediately. Note that deleting
blocks immediately can cause query failures, if store
gateway still has the block loaded, or compactor is
ignoring the deletion because it's compacting the
block at the same time.
Bucket ls #
tools bucket ls is used to list all blocks in the specified bucket.
Example:
thanos tools bucket ls -o json --objstore.config-file="..."
usage: thanos tools bucket ls [<flags>]
List all blocks in the bucket.
Flags:
-h, --[no-]help Show context-sensitive help (also try --help-long
and --help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or
json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
--objstore.config-file=<file-path>
Path to YAML file that contains object
store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--objstore.config=<content>
Alternative to 'objstore.config-file'
flag (mutually exclusive). Content of
YAML file that contains object store
configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--selector.relabel-config-file=<file-path>
Path to YAML file with relabeling configuration
that allows selecting blocks to act on based on
their external labels. It follows thanos sharding
relabel-config syntax. For format details see:
https://thanos.io/tip/thanos/sharding.md/#relabelling
--selector.relabel-config=<content>
Alternative to 'selector.relabel-config-file'
flag (mutually exclusive). Content of YAML
file with relabeling configuration that allows
selecting blocks to act on based on their
external labels. It follows thanos sharding
relabel-config syntax. For format details see:
https://thanos.io/tip/thanos/sharding.md/#relabelling
-o, --output="" Optional format in which to print each block's
information. Options are 'json', 'wide' or a custom
template.
--[no-]exclude-delete Exclude blocks marked for deletion.
--min-time=0000-01-01T00:00:00Z
Start of time range limit to list blocks. Thanos
Tools will list blocks, which were created later
than this value. Option can be a constant time in
RFC3339 format or time duration relative to current
time, such as -1d or 2h45m. Valid duration units
are ms, s, m, h, d, w, y.
--max-time=9999-12-31T23:59:59Z
End of time range limit to list. Thanos Tools
will list only blocks, which were created earlier
than this value. Option can be a constant time in
RFC3339 format or time duration relative to current
time, such as -1d or 2h45m. Valid duration units
are ms, s, m, h, d, w, y.
--timeout=5m Timeout to download metadata from remote storage
Bucket inspect #
tools bucket inspect is used to inspect buckets in a detailed way using stdout in ASCII table format.
Example:
thanos tools bucket inspect -l environment=\"prod\" --objstore.config-file="..."
usage: thanos tools bucket inspect [<flags>]
Inspect all blocks in the bucket in detailed, table-like way.
Flags:
-h, --[no-]help Show context-sensitive help (also try --help-long
and --help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or
json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
--objstore.config-file=<file-path>
Path to YAML file that contains object
store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--objstore.config=<content>
Alternative to 'objstore.config-file'
flag (mutually exclusive). Content of
YAML file that contains object store
configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
-l, --selector=<name>=\"<value>\" ...
Selects blocks based on label, e.g. '-l
key1=\"value1\" -l key2=\"value2\"'. All key value
pairs must match.
--sort-by=FROM... ... Sort by columns. It's also possible to sort by
multiple columns, e.g. '--sort-by FROM --sort-by
UNTIL'. I.e., if the 'FROM' value is equal the rows
are then further sorted by the 'UNTIL' value.
--timeout=5m Timeout to download metadata from remote storage
--output=table Output format for result. Currently supports table,
csv, tsv.
Bucket replicate #
bucket tools replicate is used to replicate buckets from one object storage to another.
NOTE: Currently it works only with Thanos blocks (meta.json has to have Thanos metadata).
Example:
thanos tools bucket replicate --objstore.config-file="..." --objstore-to.config="..."
usage: thanos tools bucket replicate [<flags>]
Replicate data from one object storage to another. NOTE: Currently it works only
with Thanos blocks (meta.json has to have Thanos metadata).
Flags:
-h, --[no-]help Show context-sensitive help (also try --help-long
and --help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or
json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
--objstore.config-file=<file-path>
Path to YAML file that contains object
store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--objstore.config=<content>
Alternative to 'objstore.config-file'
flag (mutually exclusive). Content of
YAML file that contains object store
configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--http-address="0.0.0.0:10902"
Listen host:port for HTTP endpoints.
--http-grace-period=2m Time to wait after an interrupt received for HTTP
Server.
--http.config="" [EXPERIMENTAL] Path to the configuration file
that can enable TLS or authentication for all HTTP
endpoints.
--objstore-to.config-file=<file-path>
Path to YAML file that contains object
store-to configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
The object storage which replicate data to.
--objstore-to.config=<content>
Alternative to 'objstore-to.config-file'
flag (mutually exclusive). Content of
YAML file that contains object store-to
configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
The object storage which replicate data to.
--resolution=0s... ... Only blocks with these resolutions will be
replicated. Repeated flag.
--compaction-min=1 Only blocks with at least this compaction level
will be replicated.
--compaction-max=4 Only blocks up to a maximum of this compaction
level will be replicated.
--compaction=COMPACTION ...
Only blocks with these compaction levels
will be replicated. Repeated flag. Overrides
compaction-min and compaction-max if set.
--matcher=MATCHER blocks whose external labels match this matcher
will be replicated. All Prometheus matchers are
supported, including =, !=, =~ and !~.
--[no-]single-run Run replication only one time, then exit.
--min-time=0000-01-01T00:00:00Z
Start of time range limit to replicate. Thanos
Replicate will replicate only metrics, which
happened later than this value. Option can be a
constant time in RFC3339 format or time duration
relative to current time, such as -1d or 2h45m.
Valid duration units are ms, s, m, h, d, w, y.
--max-time=9999-12-31T23:59:59Z
End of time range limit to replicate. Thanos
Replicate will replicate only metrics, which
happened earlier than this value. Option can be a
constant time in RFC3339 format or time duration
relative to current time, such as -1d or 2h45m.
Valid duration units are ms, s, m, h, d, w, y.
--id=ID ... Block to be replicated to the destination bucket.
IDs will be used to match blocks and other
matchers will be ignored. When specified, this
command will be run only once after successful
replication. Repeated field
--[no-]ignore-marked-for-deletion
Do not replicate blocks that have deletion mark.
Bucket downsample #
tools bucket downsample is used to downsample blocks in an object store bucket as a service. It implements the downsample API on top of historical data in an object storage bucket.
thanos tools bucket downsample \
--data-dir "/local/state/data/dir" \
--objstore.config-file "bucket.yml"
The content of bucket.yml:
type: GCS
config:
bucket: ""
service_account: ""
use_grpc: false
grpc_conn_pool_size: 0
http_config:
idle_conn_timeout: 0s
response_header_timeout: 0s
insecure_skip_verify: false
tls_handshake_timeout: 0s
expect_continue_timeout: 0s
max_idle_conns: 0
max_idle_conns_per_host: 0
max_conns_per_host: 0
tls_config:
ca_file: ""
cert_file: ""
key_file: ""
server_name: ""
insecure_skip_verify: false
disable_compression: false
chunk_size_bytes: 0
max_retries: 0
prefix: ""
usage: thanos tools bucket downsample [<flags>]
Continuously downsamples blocks in an object store bucket.
Flags:
-h, --[no-]help Show context-sensitive help (also try --help-long
and --help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or
json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
--objstore.config-file=<file-path>
Path to YAML file that contains object
store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--objstore.config=<content>
Alternative to 'objstore.config-file'
flag (mutually exclusive). Content of
YAML file that contains object store
configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--http-address="0.0.0.0:10902"
Listen host:port for HTTP endpoints.
--http-grace-period=2m Time to wait after an interrupt received for HTTP
Server.
--http.config="" [EXPERIMENTAL] Path to the configuration file
that can enable TLS or authentication for all HTTP
endpoints.
--wait-interval=5m Wait interval between downsample runs.
--downsample.concurrency=1
Number of goroutines to use when downsampling
blocks.
--block-files-concurrency=1
Number of goroutines to use when
fetching/uploading block files from object
storage.
--data-dir="./data" Data directory in which to cache blocks and
process downsamplings.
--hash-func= Specify which hash function to use when
calculating the hashes of produced files. If no
function has been specified, it does not happen.
This permits avoiding downloading some files twice
albeit at some performance cost. Possible values
are: "", "SHA256".
Bucket mark #
tools bucket mark can be used to manually mark block for deletion.
NOTE: If the Compactor is currently running and compacting exactly same block, this operation would be potentially a noop."
thanos tools bucket mark \
--id "01C8320GCGEWBZF51Q46TTQEH9" --id "01C8J352831FXGZQMN2NTJ08DY"
--objstore.config-file "bucket.yml"
The example content of bucket.yml:
type: GCS
config:
bucket: ""
service_account: ""
use_grpc: false
grpc_conn_pool_size: 0
http_config:
idle_conn_timeout: 0s
response_header_timeout: 0s
insecure_skip_verify: false
tls_handshake_timeout: 0s
expect_continue_timeout: 0s
max_idle_conns: 0
max_idle_conns_per_host: 0
max_conns_per_host: 0
tls_config:
ca_file: ""
cert_file: ""
key_file: ""
server_name: ""
insecure_skip_verify: false
disable_compression: false
chunk_size_bytes: 0
max_retries: 0
prefix: ""
usage: thanos tools bucket mark --id=ID --marker=MARKER [<flags>]
Mark block for deletion or no-compact in a safe way. NOTE: If the compactor is
currently running compacting same block, this operation would be potentially a
noop.
Flags:
-h, --[no-]help Show context-sensitive help (also try --help-long and
--help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
--objstore.config-file=<file-path>
Path to YAML file that contains object
store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--objstore.config=<content>
Alternative to 'objstore.config-file' flag (mutually
exclusive). Content of YAML file that contains
object store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--id=ID ... ID (ULID) of the blocks to be marked for deletion
(repeated flag)
--marker=MARKER Marker to be put.
--details=DETAILS Human readable details to be put into marker.
--[no-]remove Remove the marker.
Bucket Rewrite #
tools bucket rewrite rewrites chosen blocks in the bucket, while deleting or modifying series.
For example we can remove all non counters from the block you have on your disk (e.g in Prometheus dir):
thanos tools bucket rewrite --no-dry-run \
--id 01DN3SK96XDAEKRB1AN30AAW6E \
--objstore.config "
type: FILESYSTEM
config:
directory: <local dir>
" \
--rewrite.to-delete-config "
- matchers: \"{__name__!~\\\".*total\\\"}\"
"
By default, rewrite also produces change.log in the tmp local dir. Look for log message like:
ts=2020-11-09T00:40:13.703322181Z caller=level.go:63 level=info msg="changelog will be available" file=/tmp/thanos-rewrite/01EPN74E401ZD2SQXS4SRY6DZX/change.log`
usage: thanos tools bucket rewrite --id=ID [<flags>]
Rewrite chosen blocks in the bucket, while deleting or modifying series Resulted
block has modified stats in meta.json. Additionally compaction.sources are
altered to not confuse readers of meta.json. Instead thanos.rewrite section
is added with useful info like old sources and deletion requests. NOTE: It's
recommended to turn off compactor while doing this operation. If the compactor
is running and touching exactly same block that is being rewritten, the resulted
rewritten block might only cause overlap (mitigated by marking overlapping block
manually for deletion) and the data you wanted to rewrite could already part of
bigger block.
Use FILESYSTEM type of bucket to rewrite block on disk (suitable for vanilla
Prometheus) After rewrite, it's caller responsibility to delete or mark source
block for deletion to avoid overlaps. WARNING: This procedure is *IRREVERSIBLE*
after certain time (delete delay), so do backup your blocks first.
Flags:
-h, --[no-]help Show context-sensitive help (also try --help-long
and --help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
--objstore.config-file=<file-path>
Path to YAML file that contains object
store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--objstore.config=<content>
Alternative to 'objstore.config-file' flag (mutually
exclusive). Content of YAML file that contains
object store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--id=ID ... ID (ULID) of the blocks for rewrite (repeated flag).
--tmp.dir="/tmp/thanos-rewrite"
Working directory for temporary files
--[no-]dry-run Prints the series changes instead of doing them.
Defaults to true, for user to double check. (:
Pass --no-dry-run to skip this.
--[no-]prom-blocks If specified, we assume the blocks to be uploaded
are only used with Prometheus so we don't check
external labels in this case.
--[no-]delete-blocks Whether to delete the original blocks after
rewriting blocks successfully. Available in non
dry-run mode only.
--hash-func= Specify which hash function to use when calculating
the hashes of produced files. If no function has
been specified, it does not happen. This permits
avoiding downloading some files twice albeit at some
performance cost. Possible values are: "", "SHA256".
--rewrite.to-delete-config-file=<file-path>
Path to YAML file that contains
[]metadata.DeletionRequest that will be applied to
blocks
--rewrite.to-delete-config=<content>
Alternative to 'rewrite.to-delete-config-file' flag
(mutually exclusive). Content of YAML file that
contains []metadata.DeletionRequest that will be
applied to blocks
--rewrite.to-relabel-config-file=<file-path>
Path to YAML file that contains relabel configs that
will be applied to blocks
--rewrite.to-relabel-config=<content>
Alternative to 'rewrite.to-relabel-config-file'
flag (mutually exclusive). Content of YAML file that
contains relabel configs that will be applied to
blocks
--[no-]rewrite.add-change-log
If specified, all modifications are written to new
block directory. Disable if latency is to high.
Bucket Upload Blocks #
tools bucket upload-blocks uploads a blocks created on the given bucket.
usage: thanos tools bucket upload-blocks [<flags>]
Upload blocks push blocks from the provided path to the object storage.
Flags:
-h, --[no-]help Show context-sensitive help (also try --help-long
and --help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or
json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
--objstore.config-file=<file-path>
Path to YAML file that contains object
store configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--objstore.config=<content>
Alternative to 'objstore.config-file'
flag (mutually exclusive). Content of
YAML file that contains object store
configuration. See format details:
https://thanos.io/tip/thanos/storage.md/#configuration
--path="./data" Path to the directory containing blocks to
upload.
--label=key="value" ... External labels to add to the uploaded blocks
(repeated).
Rules-check #
The tools rules-check subcommand contains tools for validation of Prometheus rules.
This is allowing to check the rules with the same validation as is used by the Thanos Ruler node.
NOTE: The check is equivalent to the promtool check rules with addition of Thanos Ruler extended rules file syntax, which includes partial_response_strategy field which promtool does not allow.
If the check fails the command fails with exit code 1, otherwise 0.
Example:
./thanos tools rules-check --rules cmd/thanos/testdata/rules-files/*.yaml
usage: thanos tools rules-check --rules=RULES
Check if the rule files are valid or not.
Flags:
-h, --[no-]help Show context-sensitive help (also try --help-long and
--help-man).
--[no-]version Show application version.
--log.level=info Log filtering level.
--log.format=logfmt Log format to use. Possible options: logfmt or json.
--tracing.config-file=<file-path>
Path to YAML file with tracing
configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--tracing.config=<content>
Alternative to 'tracing.config-file' flag
(mutually exclusive). Content of YAML file
with tracing configuration. See format details:
https://thanos.io/tip/thanos/tracing.md/#configuration
--[no-]enable-auto-gomemlimit
Enable go runtime to automatically limit memory
consumption.
--auto-gomemlimit.ratio=0.9
The ratio of reserved GOMEMLIMIT memory to the
detected maximum container or system memory.
--rules=RULES ... The rule files glob to check (repeated).
Probes #
- The downsample service exposes two endpoints for probing:
/-/healthystarts as soon as the initial setup is completed./-/readystarts after all the bootstrapping completed (e.g object store bucket connection) and ready to serve traffic.
NOTE: Metric endpoint starts immediately so, make sure you set up readiness probe on designated HTTP
/-/readypath.
Found a typo, inconsistency or missing information in our docs? Help us to improve Thanos documentation by proposing a fix on GitHub here ❤️
